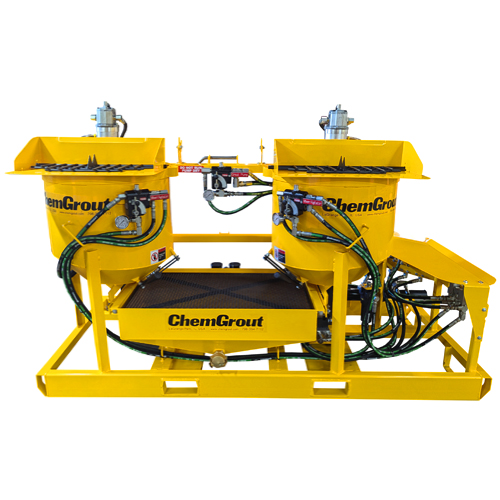

The versatile ChemGrout model CG460/2X8 is a skid mounted, high-pressure grout plant that is designed to mix and pump neat cements at high-pressures. The CG460 features two high shear colloidal 55-gallon (208 liter) mixing tanks, and a double acting, high-pressure plunger type grout pump. Dual 55 gallon colloidal mix tanks allow for independent mixing of flushing and structural grouts. Each mixer is equipped with variable speed, high-efficiency, high shear disks, rotating at speeds up to 3,000 rpm that provides rapid and thorough mixing. The tank outlet valves are a large 4” butterfly type that assures full material flow into pump suction. The grout pump is a double acting, positive displacement plunger style that will deliver 15 GPM (57 l/m), 2000 PSI (138 BAR).
Hollow Bars, Grouted Anchors, Tiebacks, Post Grouting, Shaft Sealing, Water Cutoffs and Hydro Electric Dam Grouting.
